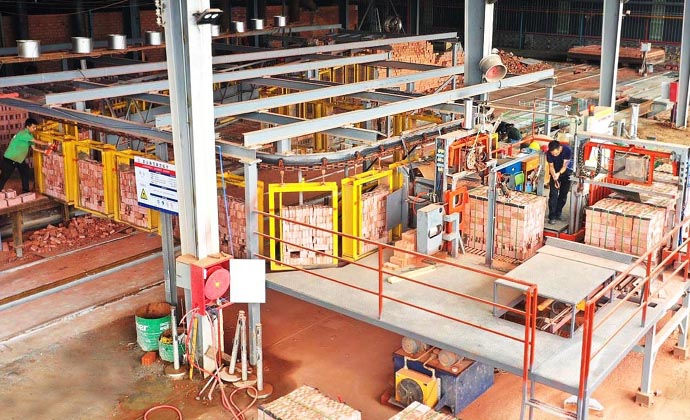

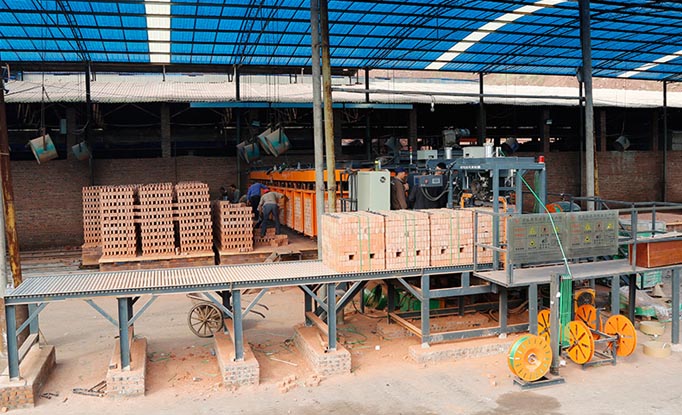

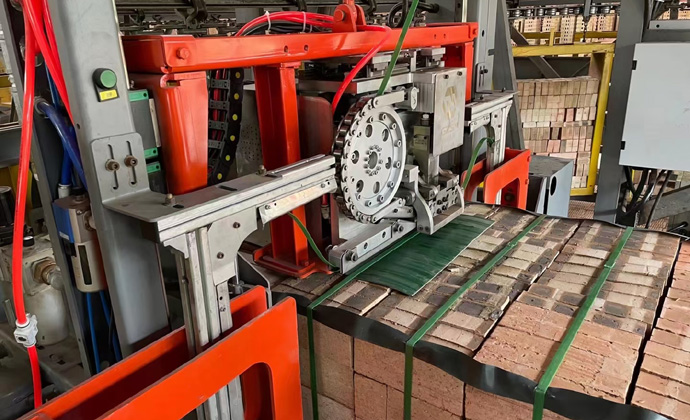

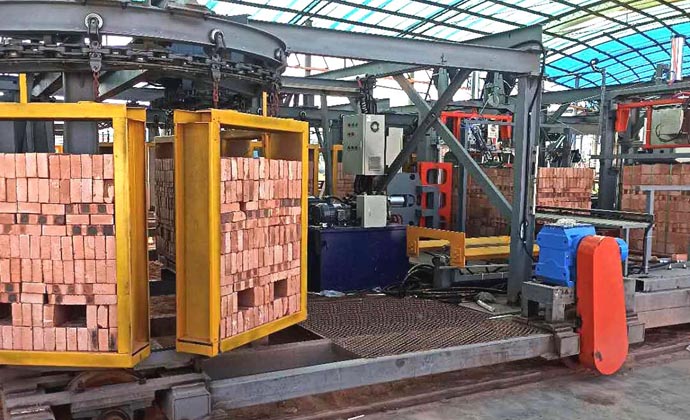

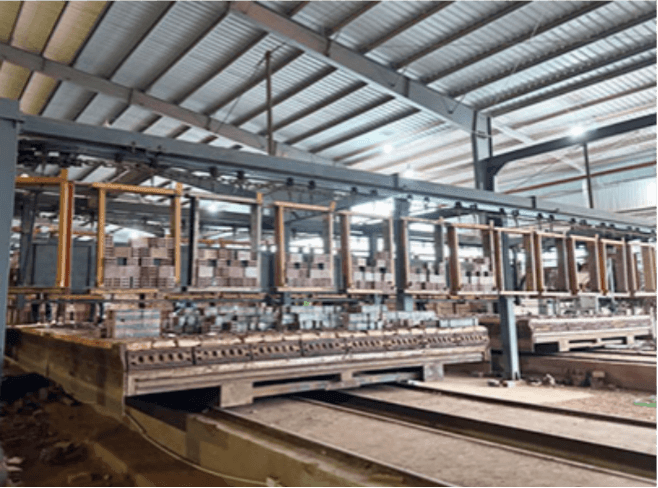

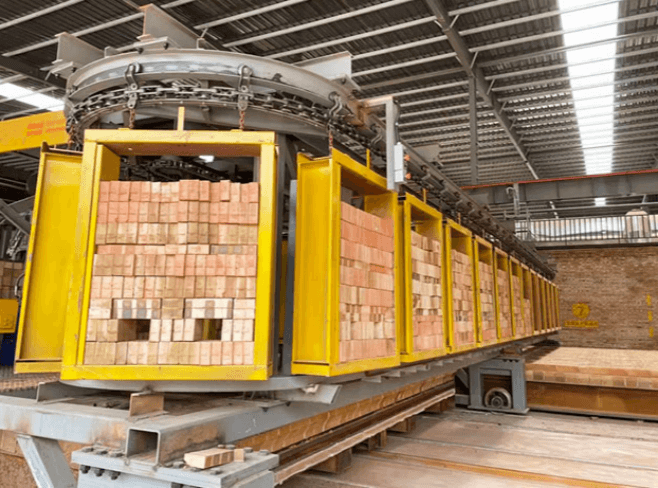

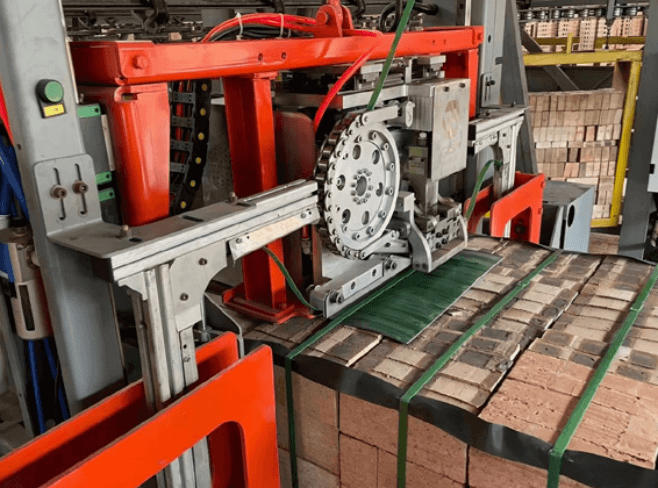

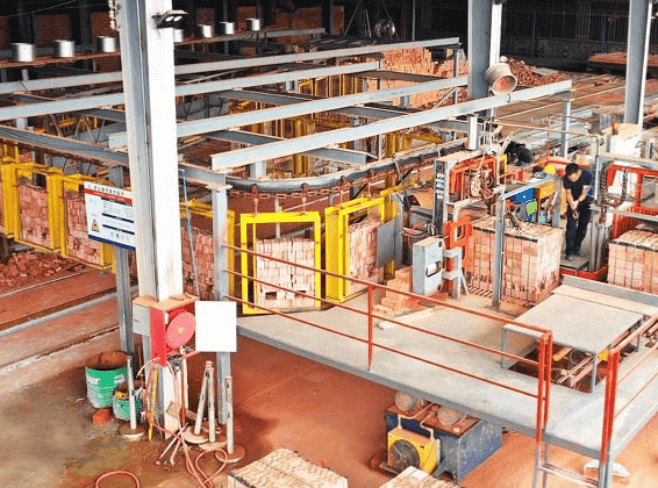

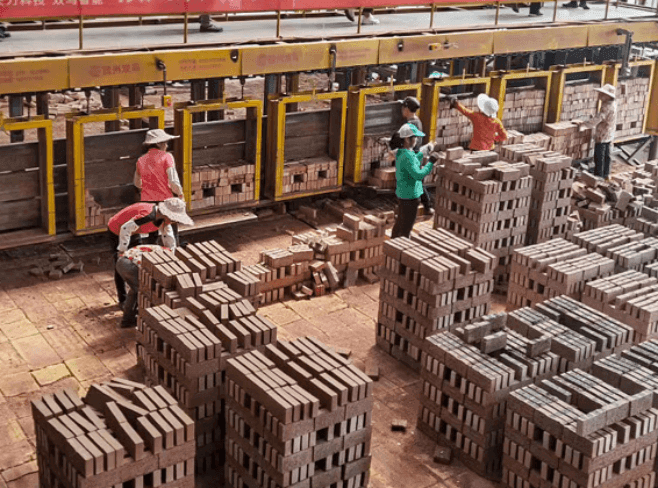

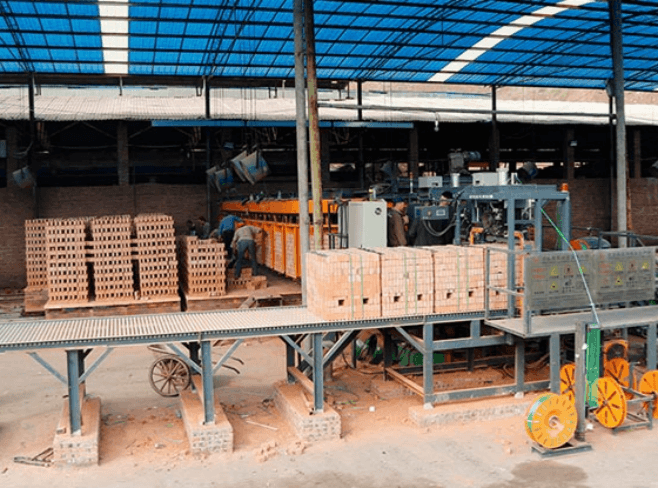

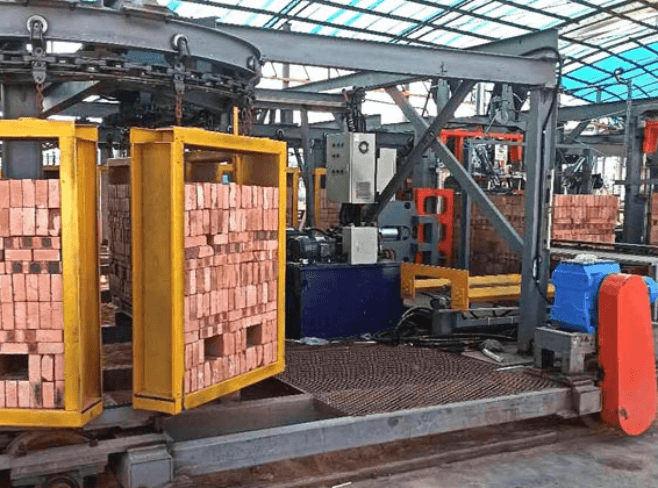

The Semi-automatic brick packing system consists of automatic brick groupping conveyor, "basket" type brick collecting machine, strapping machine, kiln wagon positioning system, brick pack conveyor and integrated control system. The entire system is controlled by PLC, and the operating table uses mainstream HMI with touch screen. The machine interface is suitable for stacking of most brick products like solid bricks, perforated bricks, hollow blocks and thermo blocks.
The Semi-automatic brick packing system consists of automatic brick groupping conveyor, "basket" type brick collecting machine, strapping machine, kiln wagon positioning system, brick pack conveyor and integrated control system. The entire system is controlled by PLC, and the operating table uses mainstream HMI with touch screen. The machine interface is suitable for stacking of most brick products like solid bricks, perforated bricks, hollow blocks and thermo blocks.
|
Model
|
500BP |
|
Application
|
Semi-automaitc brick packing machine (without pallet)
|
|
Capacity
|
12000~24000 pcs/hour (standard solid bricks)
|
|
Applicable brick type
|
Standard brick,perforated brick,Hollow block,thermal insulation block, cement brick
|
|
Install Power
|
29 Kw
|
|
Voltage/Frenquency
|
380v/50hz
|
|
Strapping cycle
|
8 ~ 12 seconds
|
|
Install dimensions
|
20×8×2.5 m
|
|
Operating temperature
|
-20~40℃
|
Famous brand PLC like Siemens, Inovance, production performance and easy maintenance is guaranteed
Building materials manufacturing industries of all types of high-end ceramics, bricks, clay tiles and hollow blocks, cement and other building materials extrusion; Food, Beverage, Chemical, Pharmaceutical, Logistics and other industries.
