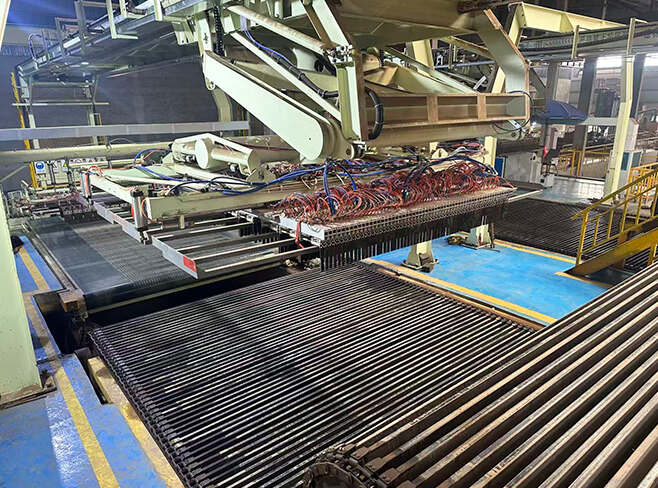

Chain-plate type rapid dryer is an unique drying solution, which suitable for the production of various fired products such as clay bricks, perforated bricks, and porous blocks but, at the same time, requires low drying sensitivity coefficient.
It conveys green bricks smoothly through the drying tunnel via a chain-plate conveying system and achieves rapid dewatering by means of a hot air circulation system.
The chain-plate type continuous drying kiln has the advantages of shortening the brick drying cycle, improving production efficiency, and reducing green brick handling and transportation.
Compared with chamber drying (secondary setting and firing system), the chain-plate type continuous drying kiln offers a cost advantage of 40% lower construction cost, greatly improving the return on investment ratio.
|
Model |
Rapid Dryer |
|
Capacity (Piece/h) |
2,000-8,000 |
|
Drying cycle (h) |
2~6 |
|
Dimensions (m) |
60L*5W* 3H |
|
Layers of bricks on plate |
1~5 |
|
Heat source |
Recycled heat from Kiln |
|
Bricks to be produced |
solid bricks, perforated bricks, hollow blocks, porous blocks, roofing tiles, claddings |
1. High Efficiency Drying: The equipment adopts a multi-point air supply and dehumidification system, which can quickly reduce the moisture content of green bricks to the required level.
2. Uniform Drying: The optimized air duct design ensures even heating of green bricks during drying, reducing cracking and deformation.
3. High Degree of Automation: The equipment can automatically record the optimal drying regimes for different raw materials and products, facilitating subsequent production.
4. Energy Saving: Waste heat from the brick firing kiln is utilized for drying, improving thermal efficiency and reducing energy consumption.
