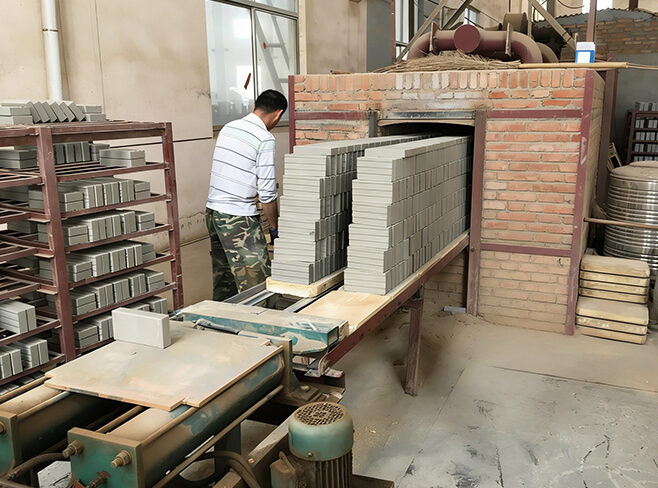

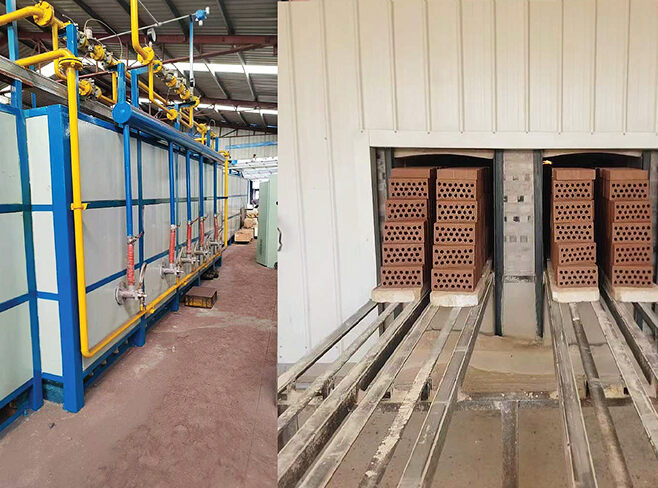

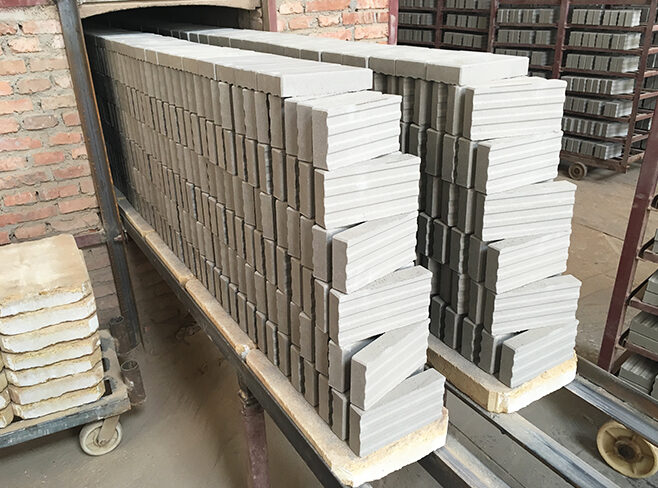

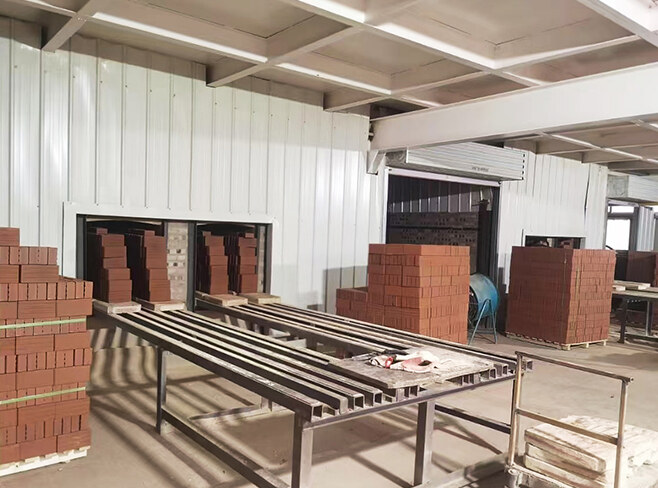

Push Plate Tunnel Kiln is specifically designed for the continuous and efficient production of bricks, tiles, pavers, and ceramic products. Its core feature is the durable, high-temperature-resistant push plate system, which slides along a solid track at the bottom of the kiln.
Bricks, tiles, and other products are loaded onto these plates and steadily moved through precisely controlled temperature firing tunnels: preheating, firing, and cooling. The temperature distribution is uniform, and the thermal efficiency is optimal.
This kiln is designed for industrial small- to medium-scale production, offering excellent durability and minimal heat loss. With the addition of automatic stacking and unstacking equipment, full automation can be achieved, maximizing the reduction in initial investment and operational maintenance costs. Its multifunctional design makes it an ideal choice for manufacturing bricks, tiles, and refractory materials, ensuring exceptional quality and efficiency in every batch of products.
|
Model |
Capacity |
Firing Cycle (hour) |
First grade product(%) |
Fuel |
Firing temperature(℃) |
Suitable for the products |
|
TBY38 |
70-90 Ton bricks/Day |
20 ~ 40 |
＞97 |
Natural Gas, LPG |
800~1250 |
Solid and perforated bricks, roofing tiles, paver bricks, porous blocks, claddings, ceramic products |
Designed for small- to medium-scale production, the kiln minimizes refractory materials, operator, and heat loss, reduces initial investment and operational maintenance costs.
The kiln offers precisely controlled temperature zones for preheating, firing, and cooling, ensuring uniform temperature distribution and optimal thermal efficiency.
Only one operator is needed per shift for kiln working, firing temperature is automatically controlled, refractory bricks kiln body is durable and barely need maintenance.
