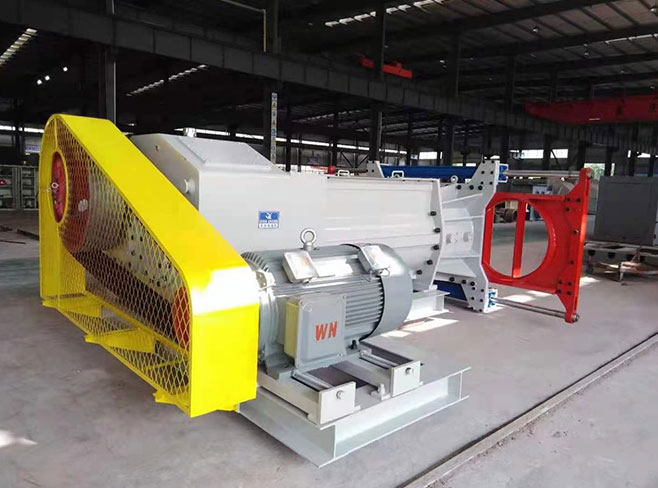

Filter Mixer for raw material treatment in Ceramic or Heavy clay industry is widely used in many industries such as ceramics, heavy clay, metallurgical machinery, metallurgy, refractory materials and chemicals.
The equipment makes the raw materials mixing efficiently, highly homogenized, improve the quality of raw materials, so that the different raw materials and water been even stirred between the particles and particles, meantime through the screw extrusion and filter mesh board to improve plasticity.

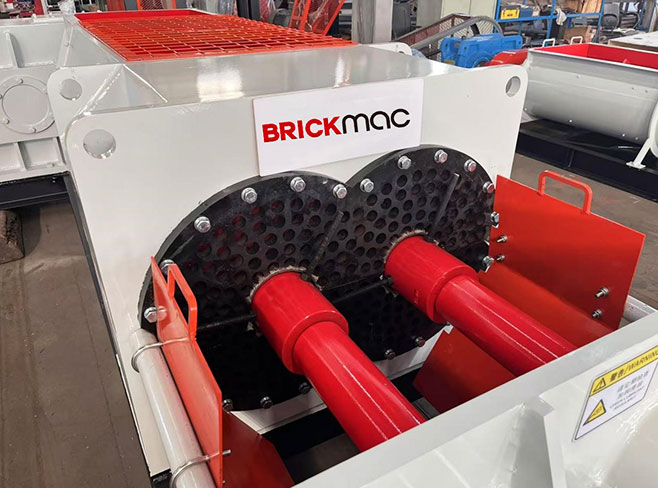

The mesh board increases the extrusion pressure, thereby improving the density of raw materials, and can filter the debris such as grass roots bark in the mud, reduce the probability of blockage of the brick machine mold, and greatly reduce the waste of production costs caused by blockage.
|
Model |
FGM-100 |
|
Production Capacity: |
≥ 70 ton/h |
|
Main shaft rotate speed: |
32 rpm |
|
Power: |
137 Kw |
|
Mixing paddle diameter: |
550 mm |
|
Screw diameter: |
550 mm |
|
Weight: |
10,250 kg |
|
Dimension: |
5540*4600*1710 mm |

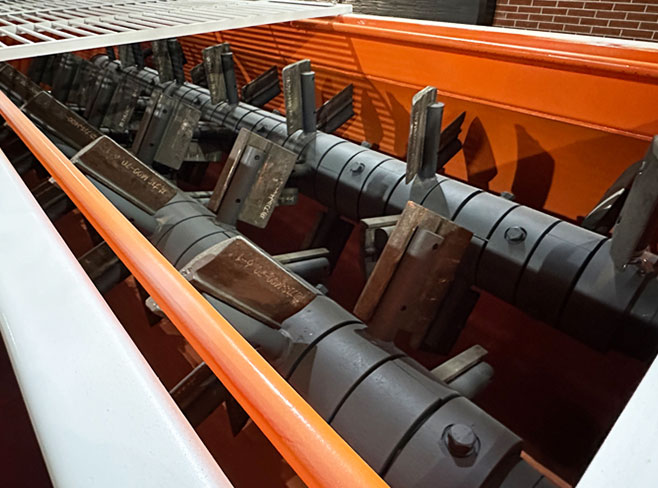

Mixing paddle is made of ceramic cover , and extrusion screw is made of Cr. alloy to ensure perfect wear assistance and long duration in operation.
The mesh board increases the extrusion pressure, thereby improving the density of raw materials, and can filter the debris such as grass roots bark in the mud, reduce the probability of blockage of the brick machine mold, and greatly reduce the waste of production costs caused by blockage.

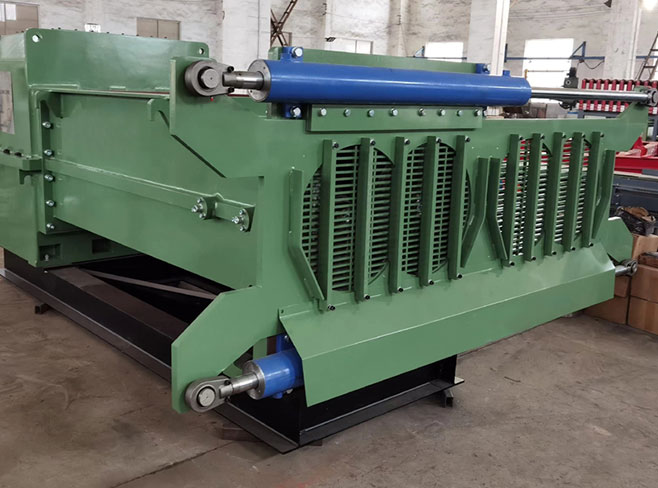

Equipped with 2 sets of filter mesh board. If the mesh board is blocked during production, the spare mesh board can be replaced with one key to ensure continuous production without stopping. At the same time, the blocked board is moved to the open space for cleaning and maintenance.
