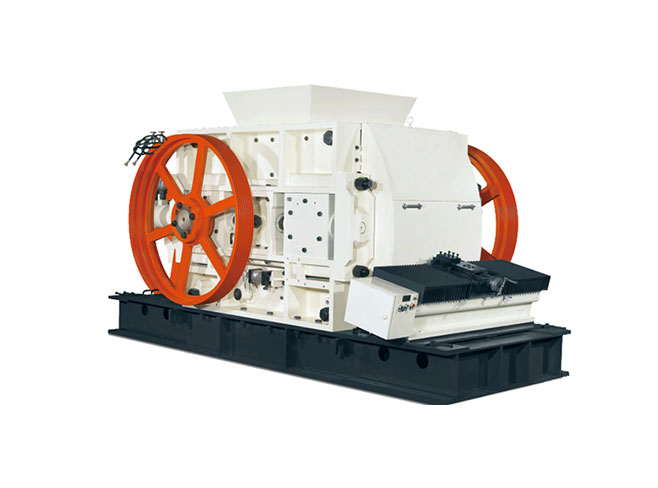

This serious of ULTRA FINE ROLLER CRUSHER adopt the leading European manufacturing and wear technology(incl. Cr alloy and tungsten carbide), its specialized for crushing high-end ceramic materials, heavy clay products like porothem blocks and tiles.
The fineness of the grinding can reach 0.5mm, which solves the problem of the roller crusher in China cannot meet the fineness requirements of under 1mm. The technology is currently the most advanced of its kind in Europe.
|
Descriptions |
Unit |
High speed roller |
Low speed roller |
||
|
Ring size (Width * Diameter) |
mm |
1200/1000 |
1200/1000 |
||
|
Big pulley diameter |
mm |
1000 |
1000 |
||
|
Roller linear speed |
m/s |
18 |
16 |
||
|
Roller ring thickness |
mm |
115 |
115 |
||
|
Roller hardness |
HRC |
58-62 |
58-62 |
||
|
Roller ring wear thickness |
mm |
50 |
50 |
||
|
Pulley |
/ |
SPB 8000-8 |
SPB 8000-8 |
||
|
Total power |
kw |
227.5 |
|||
|
Total weight |
kg |
Approx. 32,000 |
|||
|
Dimensions |
mm |
4400*4800*2500 |
|||
- Crusher equipped with motor, frame, pulley, belt, safety cover (standard)
- operating and maintenance manual (standard)
- automatic electric control cabinet (optional)
- installation drawing and foundation drawing (standard)
- Lathe (standard)
- uniformly distributor (standard)
- conveyor belt (standard)
- Hydraulic station (standard)
- permanent magnetic iron remover (optional)
High-end clay brick & tile production line, ceramic tile production line which is widely used in building materials manufacturing industries of all types of ceramics, wall panels, clay tiles and hollow blocks, perforated bricks and other building materials extrusion, the equipment has advanced features, mature technology, stable performance and high efficiency.
The fineness of the grinding can reach 0.5mm.
This serious of roller rings adopt the latest manufacturing and coating technology including Cr. alloy and tungsten carbide treatment.
With latest material treatment technology, roller ring are able to work over 20,000,000 bricks(China standard brick) and no additional maintenance is needed.
