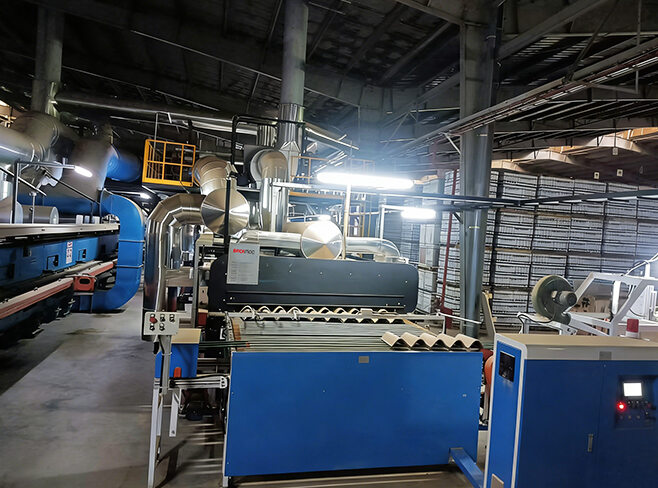

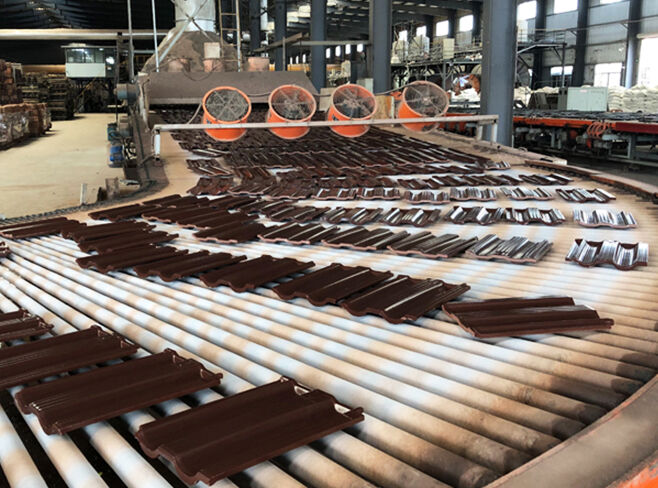

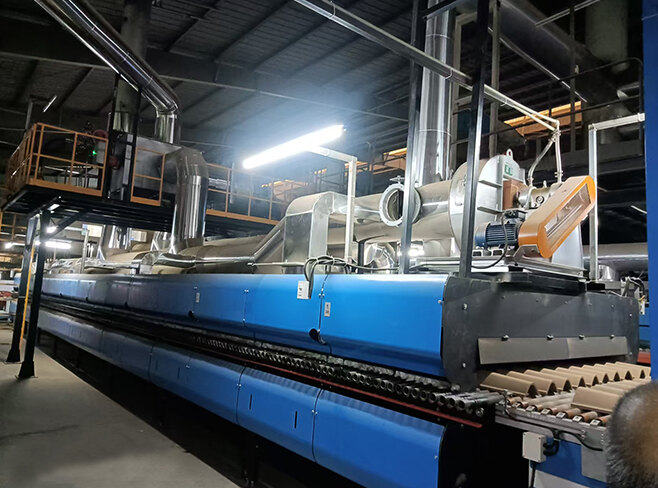

Roller Kiln is a continuous and rapid-firing industrial furnace that uses high-temperature resistant ceramic rollers as the conveying medium, where products are placed directly on the rollers and continuously pass through the kiln for firing.

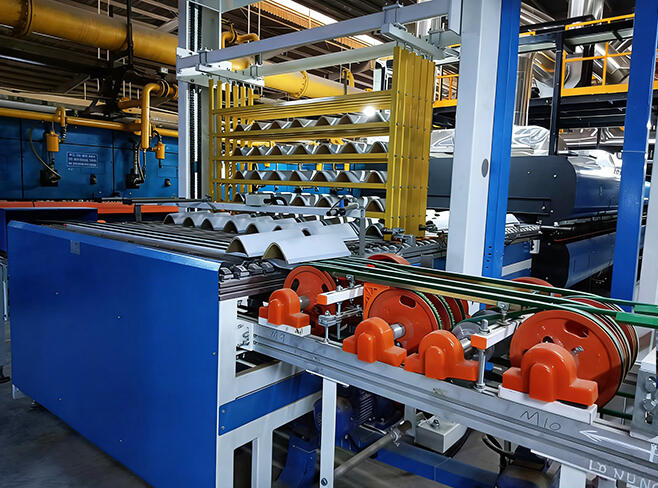

It consists of Kiln Body Steel Structure, Multi-layer refractory and insulation lining, Ceramic Rollers and transmission system, Auto combustion system, Kiln monitoring and control system, Automatic handling system. It is widely used for Ceramic tiles and slabs/wall panels, high-end clay bricks and claddings, Sanitary ceramics, Refractory products, and Specialty building materials and functional ceramic products.
|
Model |
Capacity |
Firing Cycle (Min) |
|
First grade product(%) |
Firing temperature(℃) |
Suitable for the products |
|
2.6 m (W) * 160 m (L) |
60-100 Ton/Day |
150 ~ 250 |
|
＞97 |
900~1100 |
Wall panel, roofing tiles, porous blocks, solid bricks, cladding tiles，perforated bricks and or any kinds of Facing Bricks, ceramic products |
1. Continuous Production: Products enter and exit the kiln continuously, enabling uninterrupted firing and suitability for large-scale production.
2. Short Firing Cycle: Total firing time is typically ≤ 120 minutes, significantly increasing output per unit time.
3. High-Precision Temperature Control: Multi-zone fine control ensures minimal temperature deviation and high product consistency.
4. High Energy Efficiency: Small kiln cross-section and superior insulation reduce heat loss and overall energy consumption.
5. High Level of Automation: Operating parameters can be accurately set and adjusted, reducing manual intervention.
6. Excellent Surface Quality: Uniform firing results in stable color, low deformation rate, and high surface quality.
