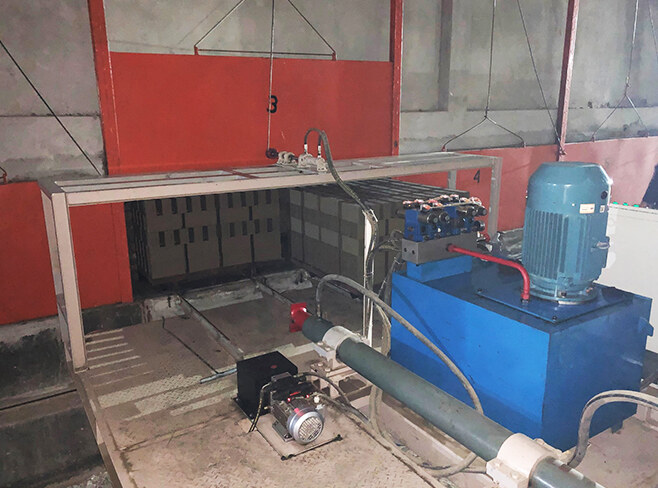

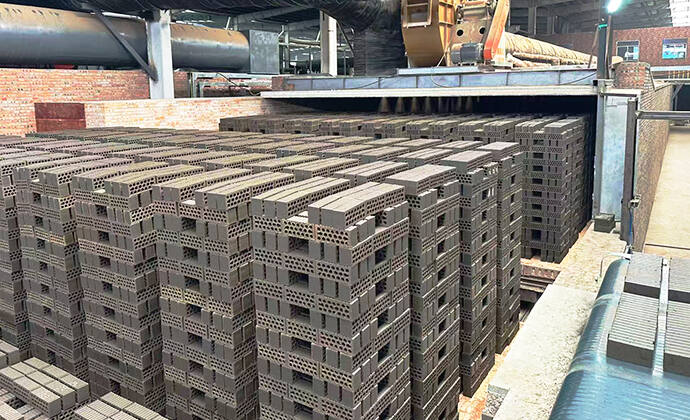

Small Section Tunnel dryer contains several tunnel channels and small sized drying trolley, the green brick is loaded on trolley for 4-5 layers only, so the brick will remain best shape /outlook and avoid the brick cracks caused by uneven shrinkage.
It is suitable for the brick made of high moisture content material( above 20%) like pure field clay/ river mud, or high-end product like hollow porous block, large batts, decorative cladding bricks and other high value-added products.
|
Model |
Small Section Tunnel Dryer – 10 channel |
|
Capacity (Piece/Day) |
50,000-60,000 |
|
Drying cycle (h) |
30~48 |
|
Dryer trolley dimensions (mm) |
1200*1200* 350 |
|
Numbers of bricks on each trolley (pcs) |
80~200 |
|
Heat source |
Waste heat from Kiln |
|
Bricks to be produced |
solid bricks, perforated bricks, hollow blocks, porous blocks, roofing tiles, claddings |
1. Tunnel-shaped channel adopts mainly brick & concrete structure, less investment.
2. Bricks body ensure longer working life under high humidity, high temperature and even sulfur-contained flue gas environment.
3. Hot air supplied by waste heat from the kiln, saving energy.
4. Less layers, protect green bricks from deforming.
5. Flexible for various of bricks types and sizes, suitable for mass production.
6. Easy operation and easy maintenance.
