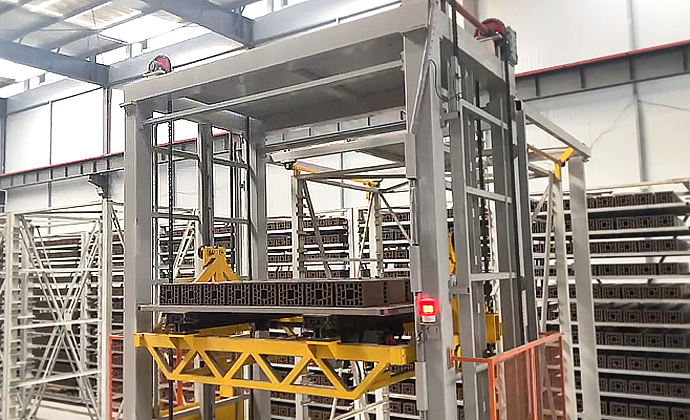

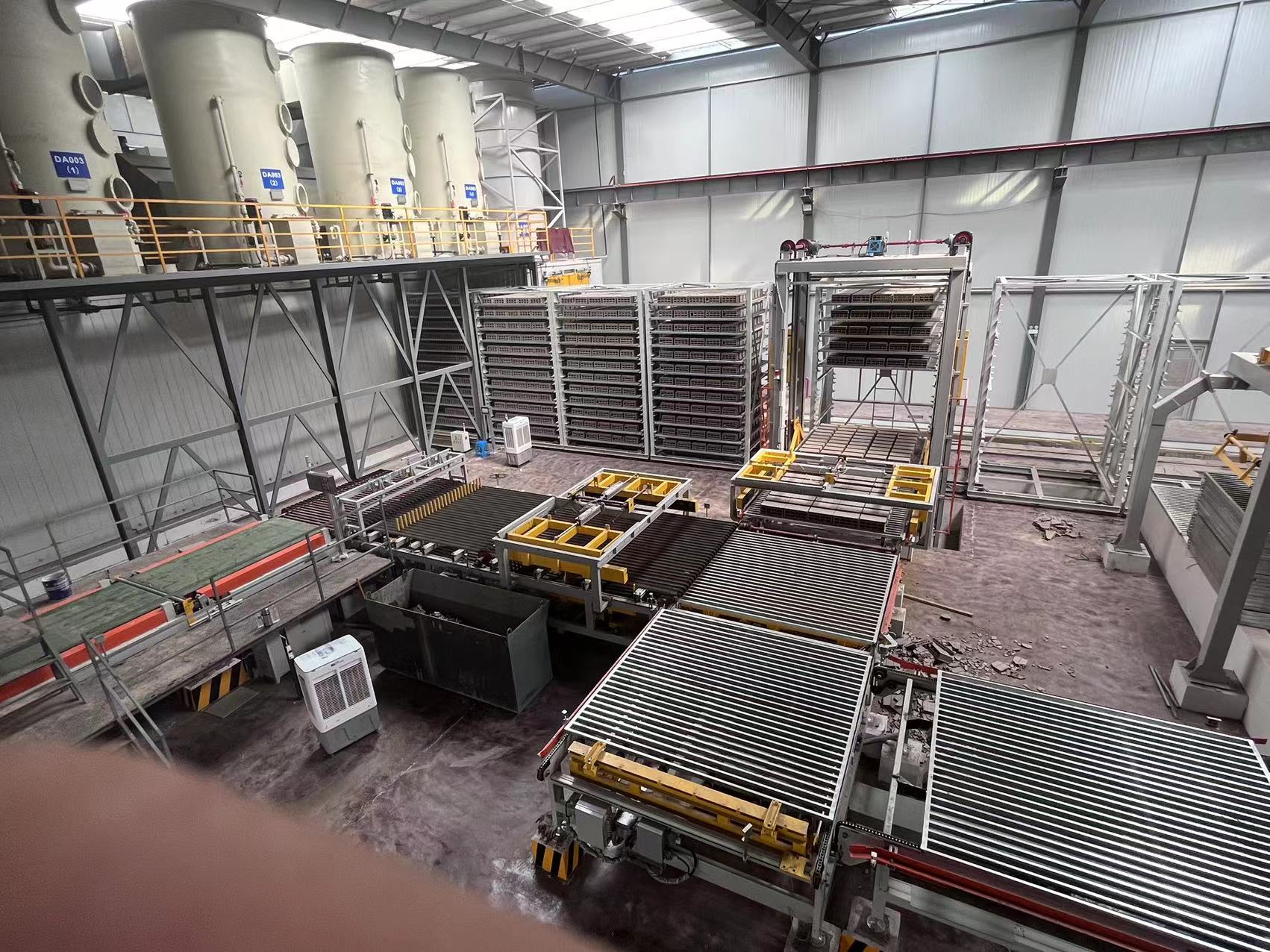

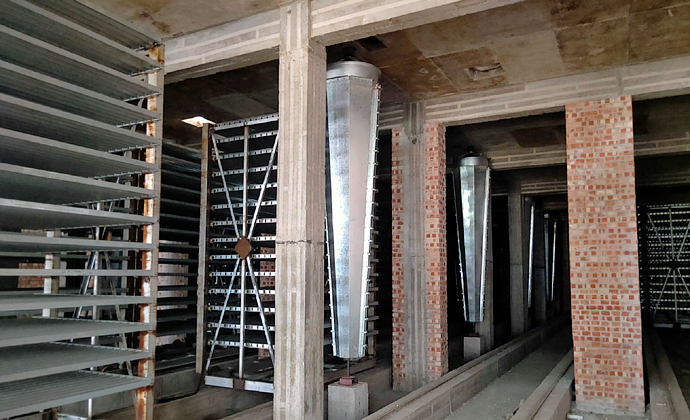

Tunnel dryer (Multiple layers rack type) adopts several tunnel channels and multi-layer drying trolley, the green brick is loaded onto each layer of trolley separately without any contact of other bricks, so the brick will remain best shape and smooth outlook. It is suitable for the brick made of high moisture content material like pure field clay/ river mud, or high-end hollow block, large batts, decorative bricks and other high value-added products.
|
Model |
Tunnel Dryer(multi-layers rack type) |
|
Capacity (Piece/h) |
12,000-16,000 |
|
Drying cycle (h) |
36~48 |
|
Dryer trolley dimensions (mm) |
2800*1825* 3913 |
|
Numbers of bricks on each trolley (pcs) |
1000~3000 |
|
Heat source |
Recycled heat from Kiln |
|
Bricks to be produced |
solid bricks, perforated bricks, hollow blocks, porous blocks, roofing tiles, claddings |
1. Tunnel dryer (Multiple layers rack type) is continuous drying system, large output and stable quality.
2. Each brick do not contact any others so bricks/tiles can get maximum efficiency of drying. It's suitable for high-end products like wall panels, roofing tiles, hollow blocks and facade bricks.
3. Good drying effect for high moisture content raw material due to each brick is separated distributed.
