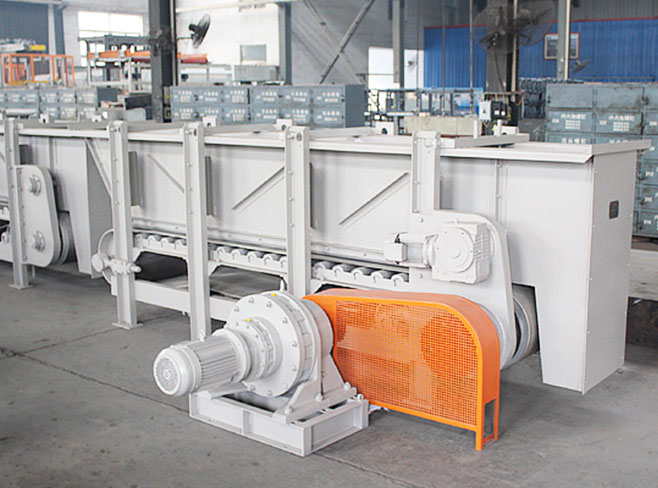

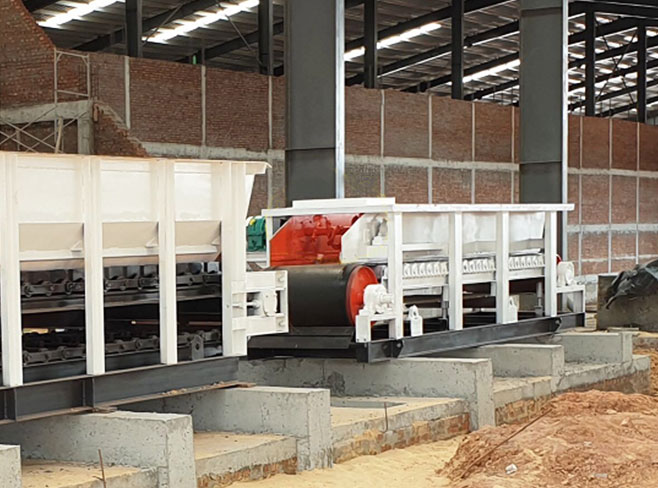

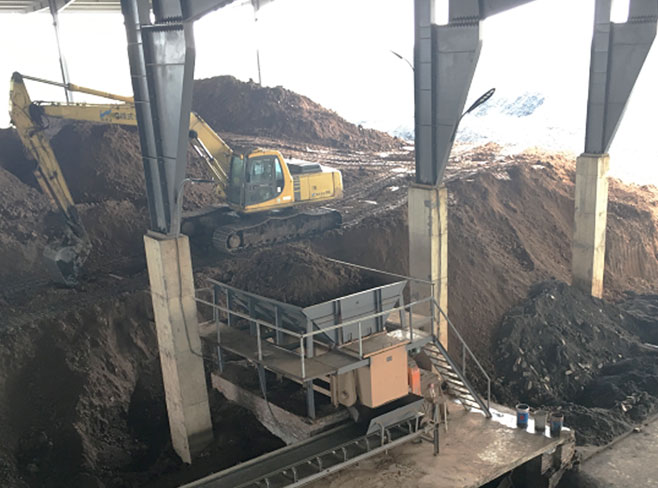

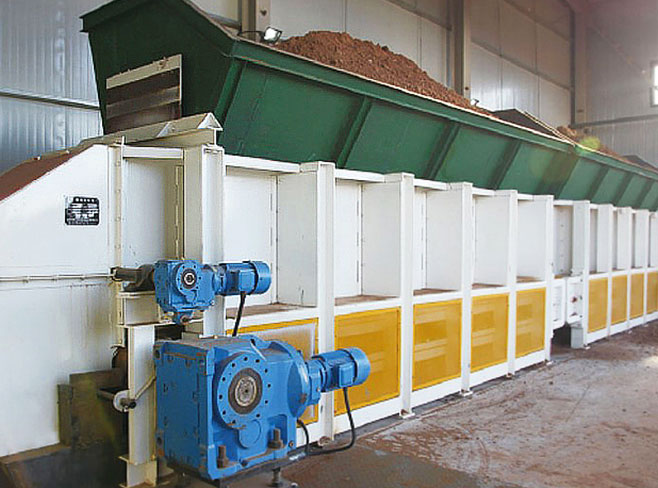

This serious of box feeder adopt the latest manufacturing technology from Europe, is widely used in building materials manufacturing industries of all types of high-end ceramics, heavy clay and other building materials.
The equipment’s material, technical structure, electrical system as well as operating system are manufactured in accordance with European standards, which have features of high degree of automation, easy operation, long life in heavy duty and less maintenance.
|
Descriptions |
Remark |
|
|
Model No. |
PD800/4 |
|
|
Output |
40~50 M3/h |
|
|
Voltage |
380 v |
|
|
Frequency |
50 hz |
|
|
Output effective width |
670 mm |
|
|
Distance between shafts |
4000 mm |
|
|
Feeding speed |
5 m/min |
|
|
Main motor brand |
SEW |
|
|
Total power |
2.2+1.5 kw |
|
|
Total weight |
3,500 kg |
with motor and reducer |
|
Dimensions |
4850*1900*2200 mm |
installation |
- motor, pulley, belt, safety cover (standard)
- inverter device (standard)

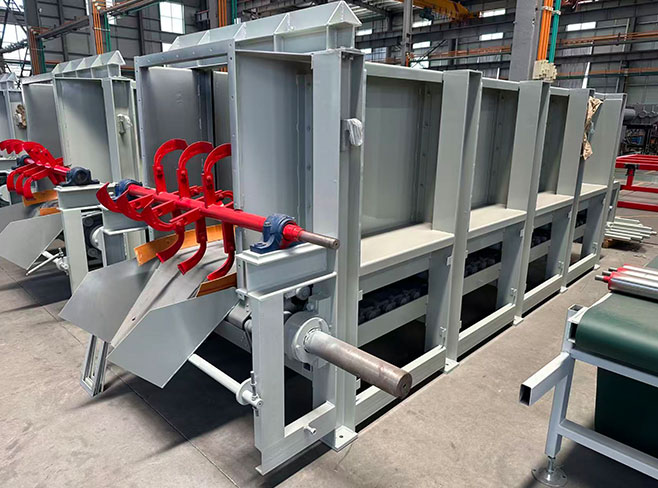

- clay loose rod (standard)
- hopper (optional)
- automatic electric control cabinet (optional)
- installation drawing and foundation drawing (standard)
- operating and maintenance manual (standard)
This serious of box feeder adopts the variable frenquency motor to make sure percise feeding and stable working performance.
This serious of extruder screw is custom designed according to client's real production condition, so the production performance and easy maintenance is guaranteed.
With latest material treatment technology, bearing and shaft and othe accessories are able to work logner time in heavy duty and less maintenance is needed.
