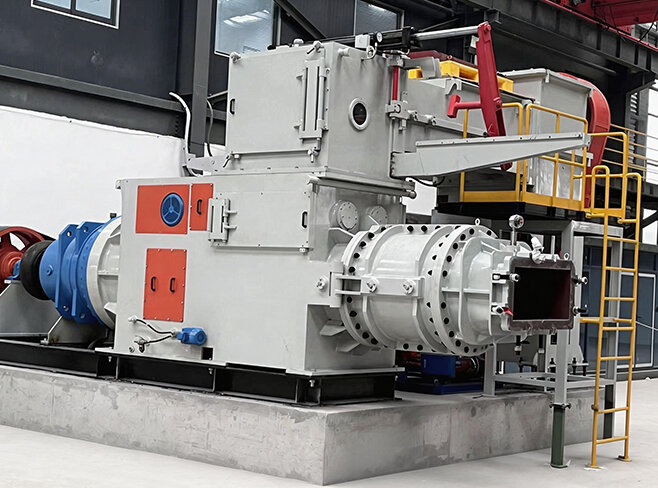

This series of DOUBLE STAGE VACUUM EXTRUDER adopt the latest manufacturing technology, from Europe and are specialized for extruding high end ceramic materials, cement products and other type of semi hard materials.
The equipment material, technical structure, electrical system, and operating system are manufactured in accordance with European standards. And feature a high degree of automation easy operation long service life and reduced maintenance cost. The scope of application, includes a high performance vacuum extruder, which is widely used in building materials manufacturing for high end ceramics clay tile hollow block cement and other building materials. The equipment offers advanced European level technology stable performance and high efficiency.
Machine includes motor pulley belt safety cover standard planet reducer standard Cr Alloy screw standard automatic electric control cabinet optional extrusion die standard installation drawing and foundation drawing standard operating and maintenance manual standard.
|
Model |
superiors |
junior |
Mpa |
yield |
weight |
Overall dimension |
||
|
Spiral diameter（mm) |
power |
Spiral diameter |
power |
|||||
|
KLJ60/60-S |
500 |
55-90 |
580/580 |
132-160 |
3 |
25-45 |
2.7 |
7.4*5.5*2.9 |
|
KLJ65/65-S |
500 |
90-110 |
640/640 |
220-280 |
3.5 |
35-60 |
2.9 |
7.6*5.5*3 |
|
KLJ75/65-S |
620 |
110-132 |
750/650 |
315-400 |
4 |
45-70 |
3.1 |
7.1*5.2*3 |
|
KLJ75/75-S |
620 |
110-132 |
750/750 |
315-400 |
3.5 |
45-80 |
3.3 |
8.3*5.7*3.2 |
|
KLJ85/85-SE |
620 |
110-160 |
850/850 |
400-500 |
3.5 |
50-110 |
3.7 |
7.9*5.3*3.4 |
Prior to extrusion, a vacuum pump (typically achieving -0.092 to -0.098 MPa) removes air from the clay, reducing body porosity and enhancing density. This prevents cracking, delamination, or explosion during drying and firing.
Utilizes a spiral auger or two-stage extrusion mechanism to ensure homogeneous clay compaction. Extrusion pressure typically ranges from 2.5 to 4.5 MPa, accommodating clay materials of varying hardness.

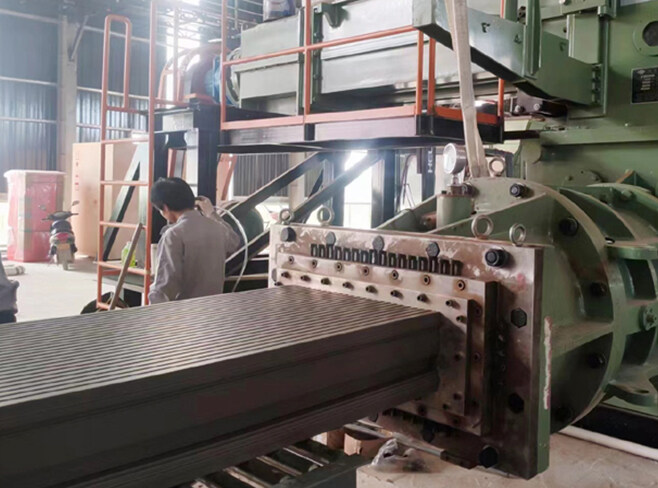

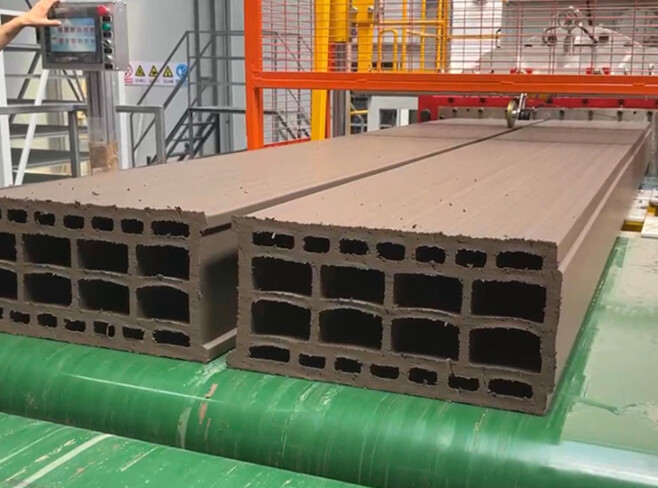

The mold determines brick dimensions and profiles (e.g., solid, hollow, or perforated bricks). High-performance extruders feature quick-change mold systems to minimize downtime and enhance production flexibility.
Critical components (auger, liner, extrusion head) utilize high-chromium alloy steel or tungsten carbide (WC) coatings for extended service life. Premium models incorporate hydraulic clearance adjustment to automatically compensate for wear, maintaining stable extrusion pressure.
Modern vacuum extruders feature PLC-controlled systems monitoring vacuum level, extrusion pressure, and motor load for intelligent adjustment. Advanced models support remote monitoring for predictive maintenance and fault alerts.
