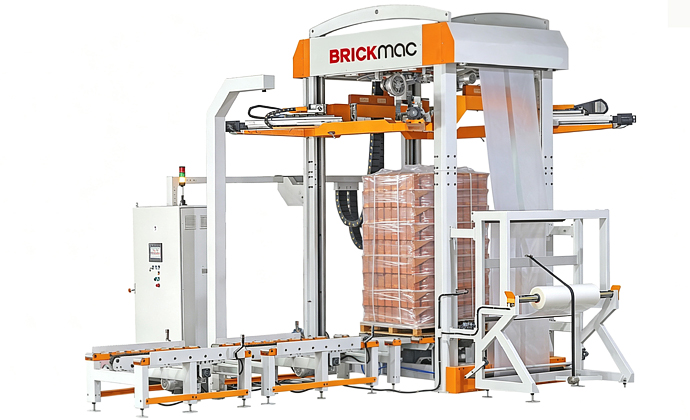

Automated stretch hood wrapping system

The fully automatic stretch hood wrapping system is also called as automated film packing, it consists of automatic brick groupping conveyor, robot(or frame setting machine), gripper, kiln wagon positioning system, film stretch wrapping machine and integrated control system. The entire system is controlled by PLC, and the operating table uses mainstream HMI with touch screen. The machine interface is suitable for packing of various industries, including food, beverages, local specialties, ceramics, and building materials like bricks, blocks and roofing tiles.

Email : info@brickmac.com

Send Message

Product Introduction

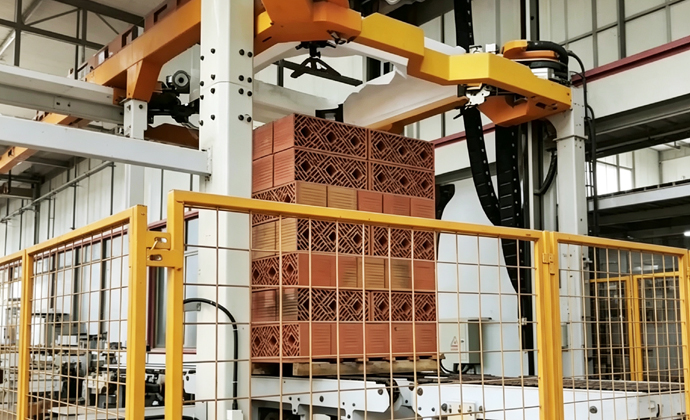

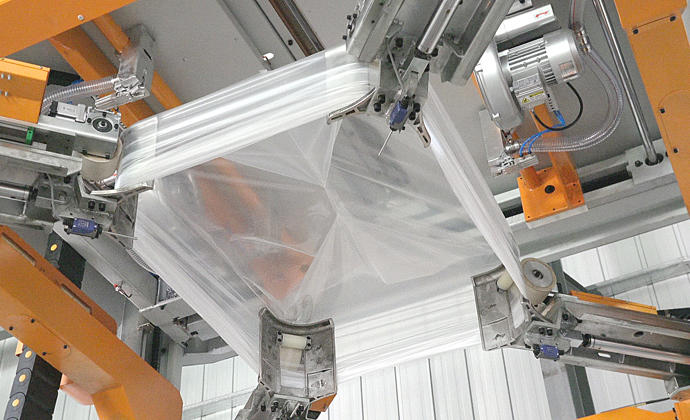

The fully automatic stretch hood wrapping system is also called as automated film packing, which is a mechanical device used for packaging products by stretching, positioning, and heat-sealing film materials to achieve rapid and efficient packaging. It consists of automatic brick groupping conveyor, robot(or frame setting machine), gripper, kiln wagon positioning system, film stretch wrapping machine and integrated control system. The entire system is controlled by PLC, and the operating table uses mainstream HMI with touch screen. The machine interface is suitable for packing of various industries, including food, beverages, local specialties, ceramics, and building materials like bricks, blocks and roofing tiles.

Application	Automaitcally packing various of products with film
Capacity	40~50 pallets/hour
Applicable brick type	Standard brick, perforated brick, Hollow block, thermal insulation block, cement brick, roofing tiles
Pallet size	1600X1160 mm or 1000X750 mm (length x width)
Install power	19 Kw
Total Packaging Height	1,100 mm
Total Packaging Weight	2,000 kg
Film Reel Diameter	Max Φ1000 mm
Film Reel Width	Max 1050 mm
Film Reel Inner Diameter	Φ76 mm
Operating temperature	-20~40℃

Features

High Efficiency: Fast packaging speed and high capacity, with some fully automatic cold stretch wrapping machines capable of handling up to 60 pallets per hour.
Cost Friendly: Compared to traditional packaging methods, shrink wrapping machines can save on packaging costs. Cold stretch wrapping machines can also use thinner films to further reduce costs.
Protective Performance: The film has properties such as waterproofing, dustproofing, and moisture resistance, effectively protecting the products.
Easy Operation: The equipment is easy to operate and maintain, making it suitable for large-scale production.
Safety and Environmental Protection: Cold stretch wrapping machines do not require heat, saving energy and eliminating the risk of fire or explosion.

Send Message

Related Products

Extrusion

This series of DOUBLE STAGE VACUUM EXTRUDER adopt the latest manufacturing technology, from Europe and are specialized for extruding high end ceramic materials, cement products and other type of semi hard materials.

Tile Wet Molding

This serious of tile machine adopt the latest manufacturing technology, its specialized for pressing curve roofing tiles, plain roofing tiles and other types of decorative tiles.

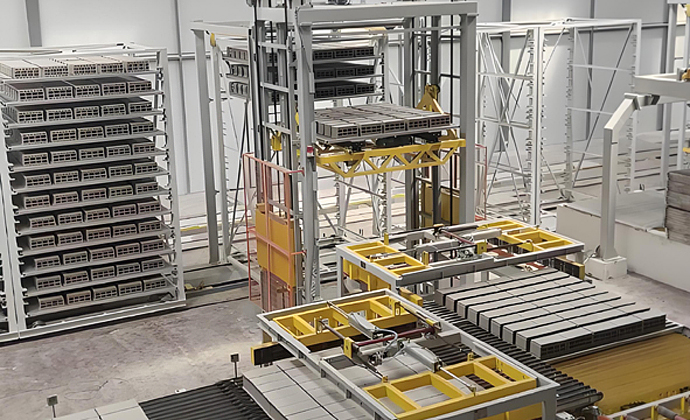

Multiple Layers Rack Tunnel Dryer
