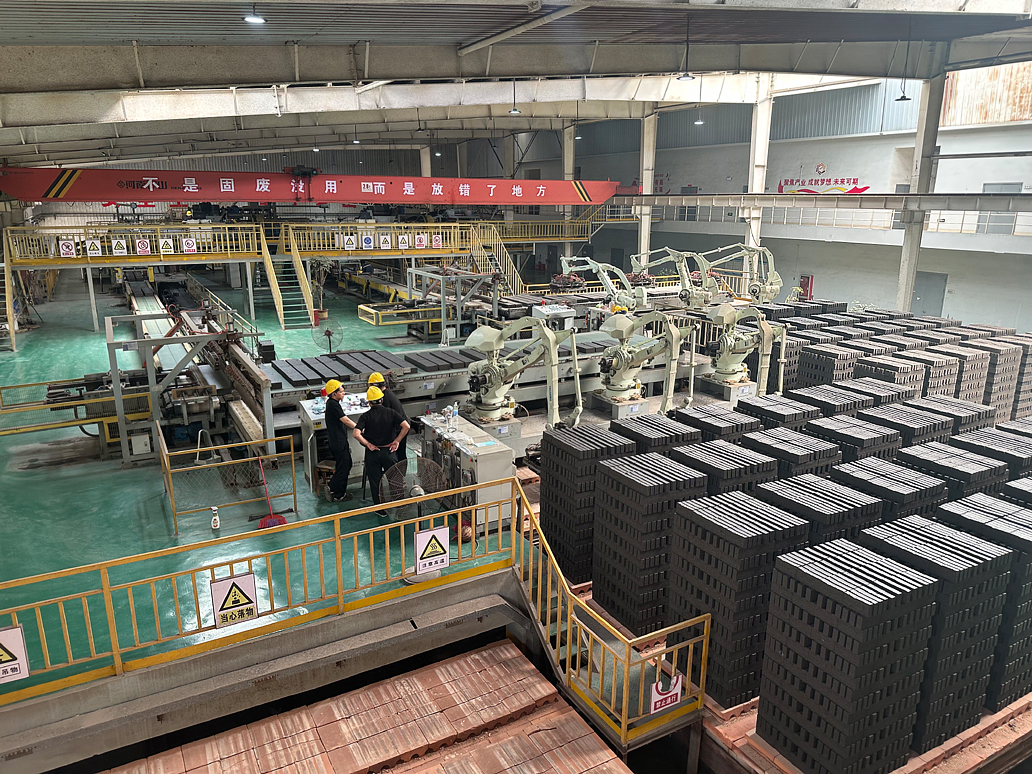

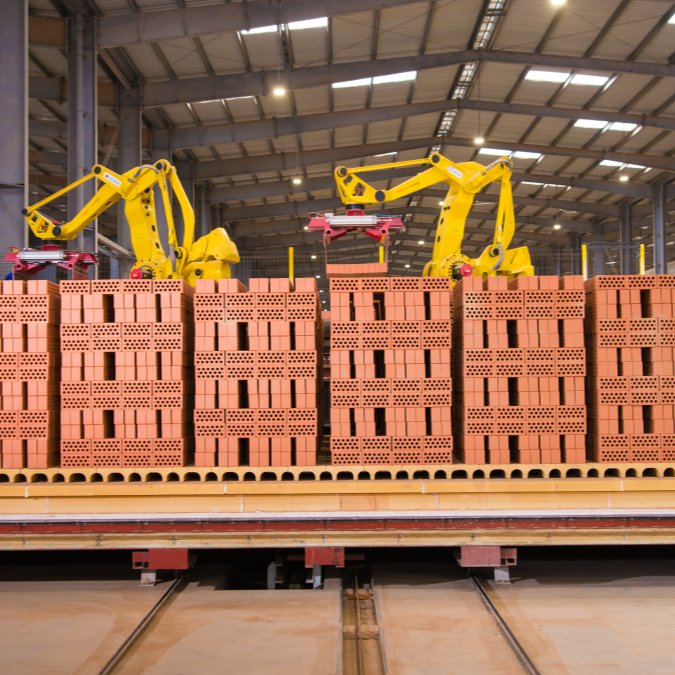

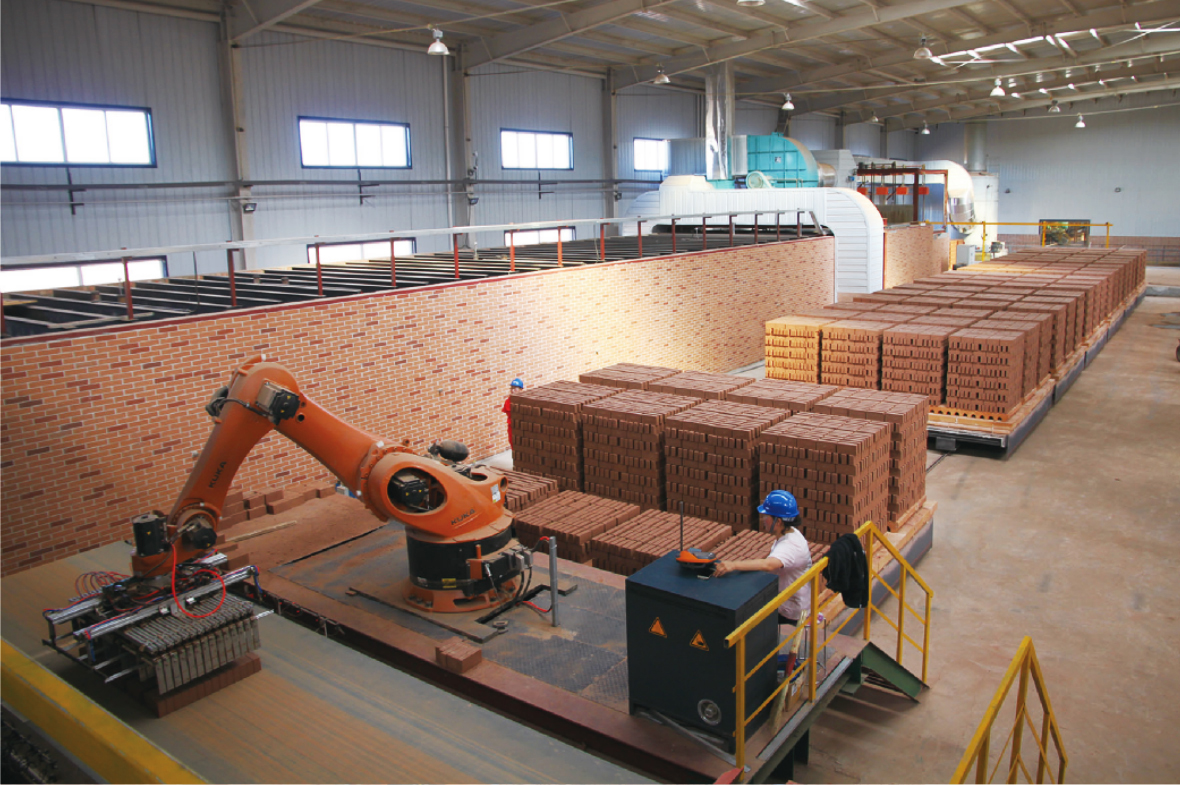

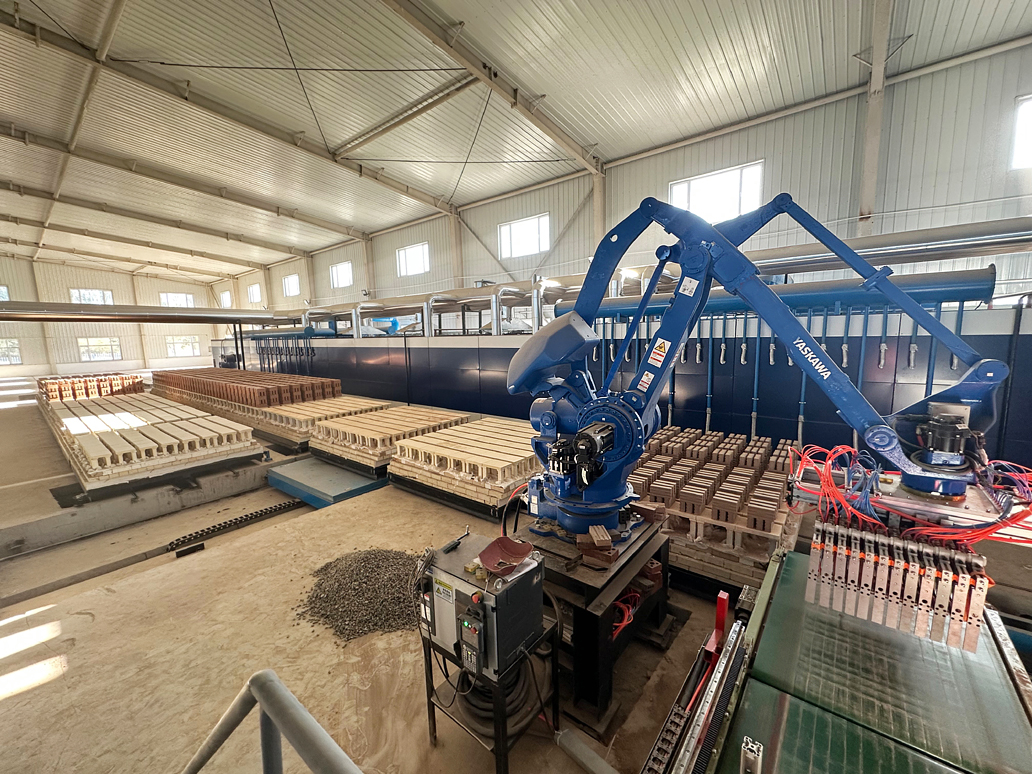

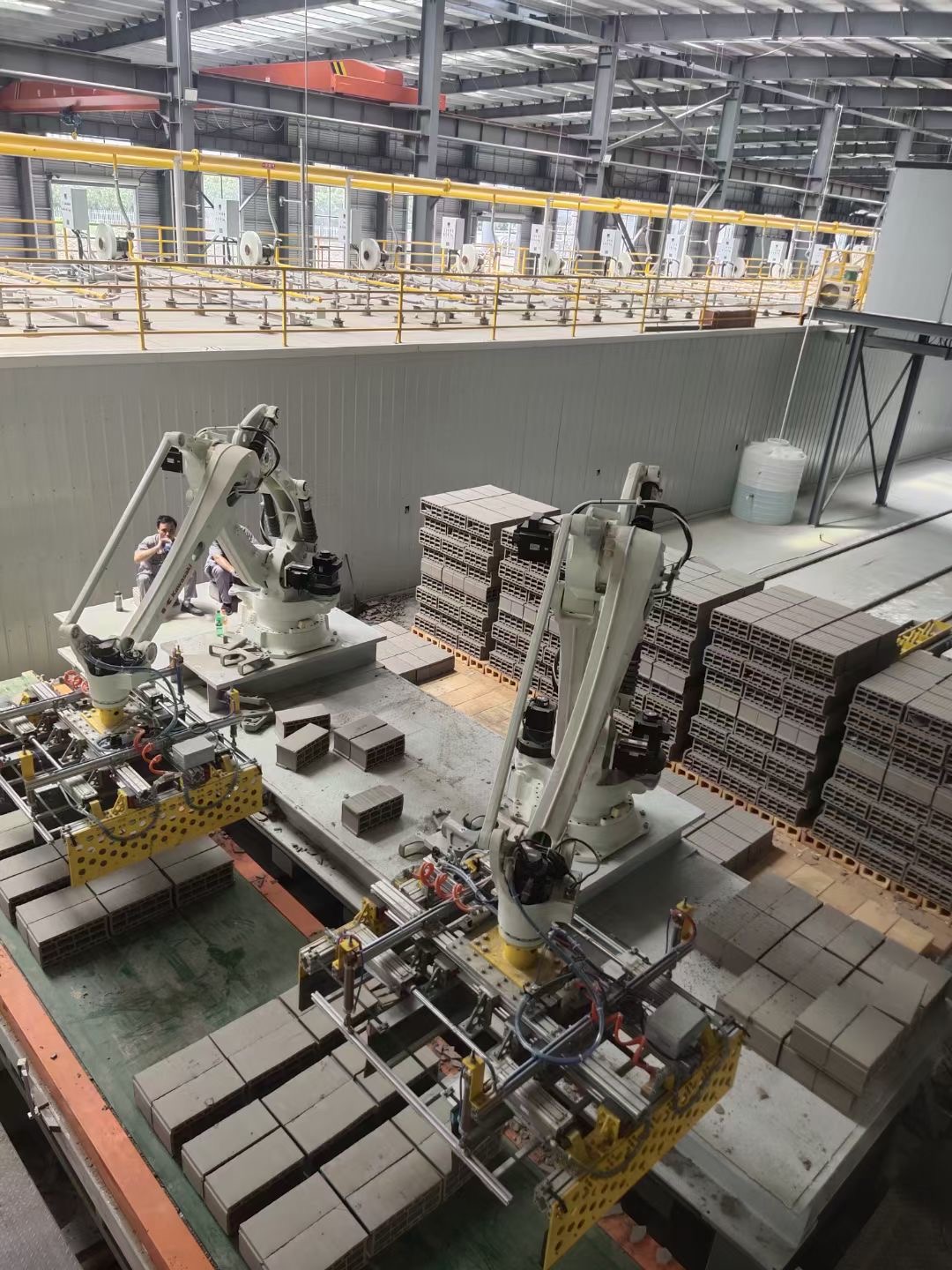

The fully automatic stacking system is also called as robotic stacker, it consists of automatic brick groupping conveyor, robot, gripper, kln wagon positioning system and integrated control system. The entire system is controlled by PLC, and the operating table uses mainstream HMI with touch screen. The machine interface is suitable for stacking of most brick products like solid bricks, perforated bricks, hollow blocks and thermo blocks.
The fully automatic stacking system is also called as robotic stacker, it consists of automatic brick groupping conveyor, robot, gripper, kln wagon positioning system and integrated control system. The entire system is controlled by PLC, and the operating table uses mainstream HMI with touch screen. The machine interface is suitable for stacking of most brick products like solid bricks, perforated bricks, hollow blocks and thermo blocks.
|
Application
|
Automaitcally Stcking brick on kiln wagon or other pallet
|
|
Capacity
|
12000~20000 pcs/hour
|
|
Applicable brick type
|
Standard brick,perforated brick,Hollow block,thermal insulation block, cement brick
|
|
Operating temperature
|
-20~40℃
|
|
No
|
Item
|
Model
|
Qnty
|
Unit
|
Power(Kw)
|
Remark
|
|
1
|
Grouping conveyor
|
XZSSJZZ-I
|
1
|
set
|
4.5
|
|
|
2
|
Robot
|
M410iC/500
|
1
|
set
|
20
|
Fanuc
|
|
3
|
Gripper
|
MPJZZ-Ⅱ
|
1
|
set
|
/
|
With separating function
|
|
4
|
Robot basement
|
ZJZZ-Ⅱ
|
1
|
set
|
/
|
|
|
5
|
Control panel
|
/
|
1
|
set
|
/
|
NOT incl. power cable from power panel to control panel.
|
Famous brand robot like Fanuc, Yaskawa, Kuka, the production performance and easy maintenance is guaranteed
Building materials manufacturing industries of all types of high-end ceramics, bricks, clay tiles and hollow blocks, cement and other building materials extrusion; Food, Beverage, Chemical, Pharmaceutical, Logistics and other industries.
