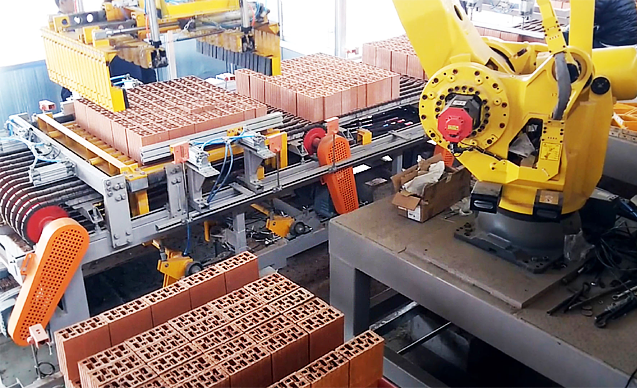

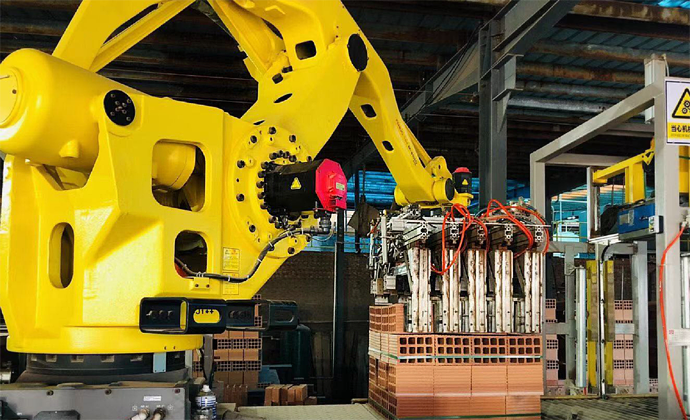

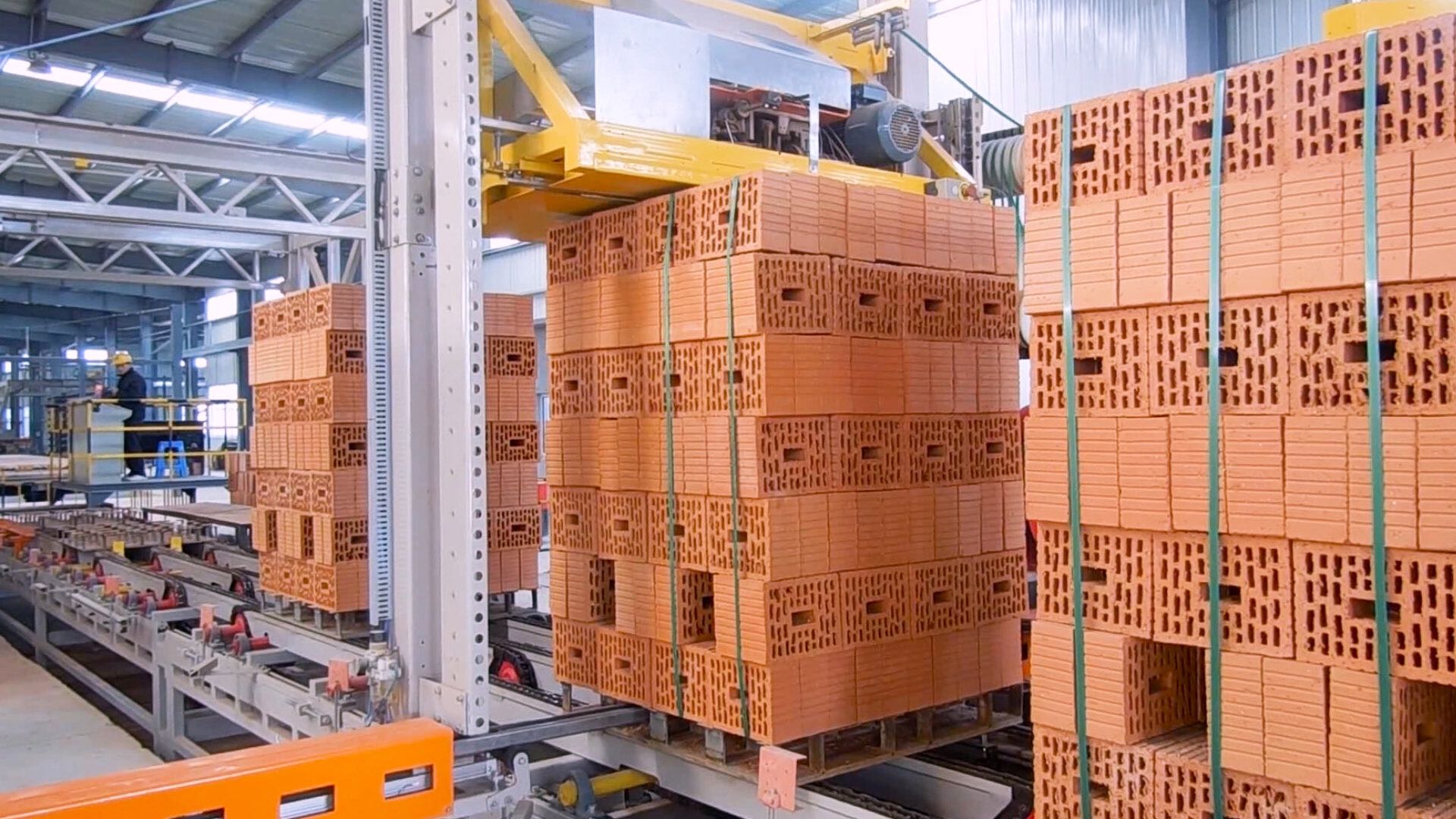

The fully automatic packing system is also called as automated packing, it consists of automatic brick groupping conveyor, robot(or frame setting machine), gripper, kiln wagon positioning system, strapping machine and integrated control system. The entire system is controlled by PLC, and the operating table uses mainstream HMI with touch screen. The machine interface is suitable for stacking of most brick products like solid bricks, perforated bricks, hollow blocks and thermo blocks.
The fully automatic packing system is also called as automated packing, it consists of automatic brick groupping conveyor, robot(or frame setting machine), gripper, kiln wagon positioning system, strapping machine and integrated control system. The entire system is controlled by PLC, and the operating table uses mainstream HMI with touch screen. The machine interface is suitable for stacking of most brick products like solid bricks, perforated bricks, hollow blocks and thermo blocks.
|
Application
|
Automaitcally packing brick with or without pallet
|
|
Capacity
|
12000~20000 pcs/hour
|
|
Applicable brick type
|
Standard brick,perforated brick,Hollow block,thermal insulation block, cement brick
|
|
Operating temperature
|
-20~40℃
|
|
No
|
Item
|
Model
|
Qnty
|
Unit
|
Power(Kw)
|
Remark
|
|
1
|
Grouping conveyor
|
XZSSJZZ-I
|
1
|
set
|
4.5
|
|
|
2
|
Unloading Robot
|
M410iC/500
|
1
|
set
|
20
|
Fanuc (or other brand)
|
|
3
|
Gripper
|
MPJZZ-Ⅱ
|
1
|
set
|
/
|
With separating function
|
|
4
|
Robot basement
|
ZJZZ-Ⅱ
|
1
|
set
|
/
|
|
|
5
|
Grouping conveyor
|
XZSSJZZ-II
|
1
|
set
|
4.5
|
|
|
6
|
Palletizing Robot
|
M410iC/500
|
1
|
set
|
20
|
Fanuc (or other brand)
|
|
7
|
Gripper
|
MPJZZ
|
1
|
set
|
/
|
|
|
8
|
Pack conveyor
|
ZDSSJ
|
1
|
set
|
4.5
|
|
| 9 |
Control panel
|
/
|
1
|
set
|
/
|
NOT incl. power cable from power panel to control panel.
|
Famous brand robot like Fanuc, Yaskawa, Kuka, the production performance and easy maintenance is guaranteed
Building materials manufacturing industries of all types of high-end ceramics, bricks, clay tiles and hollow blocks, cement and other building materials extrusion; Food, Beverage, Chemical, Pharmaceutical, Logistics and other industries.
